Bright Power System Technology is the manufacturer and supplier of Street Lighting Pole Swaged Type Steel Tubular Poles, GI Octagonal Pole, High Mast Pole, Conical Pole , Garden Decorative Poles and as per customer equirement.

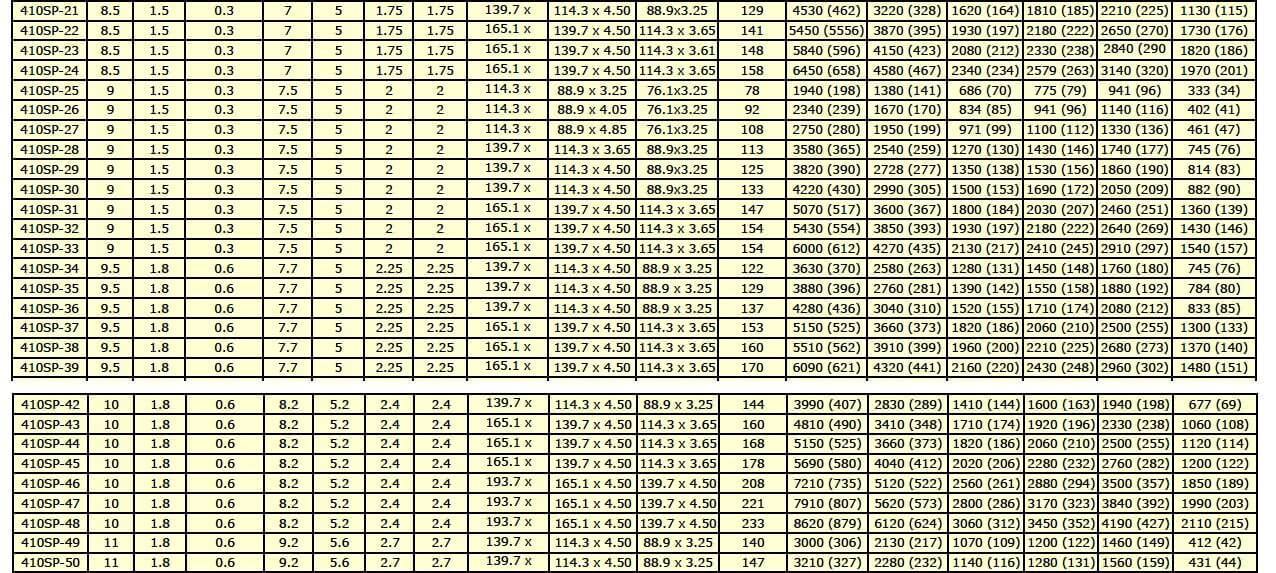

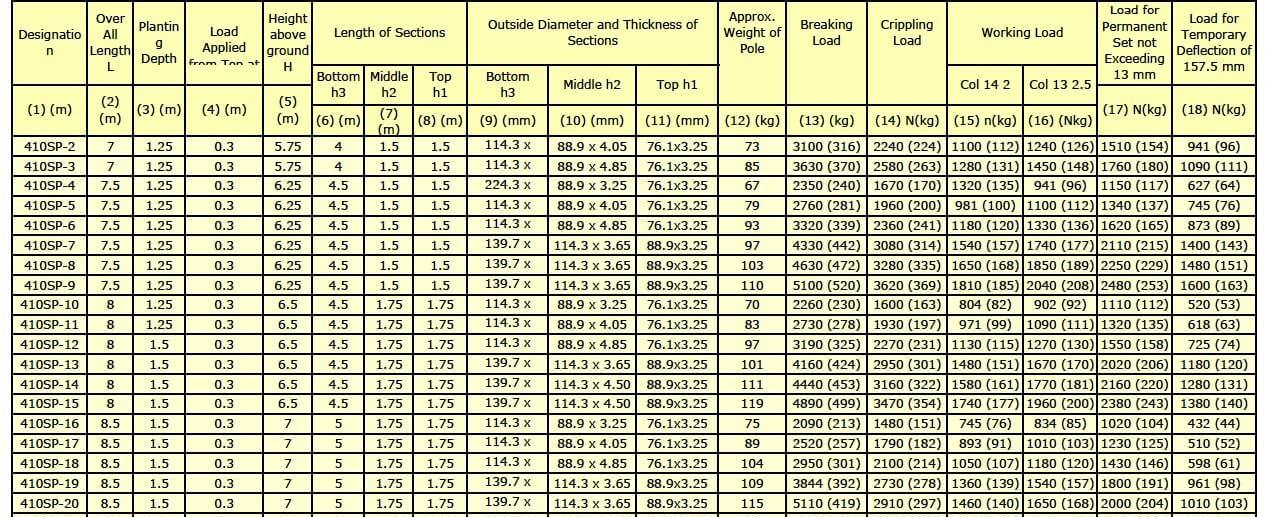

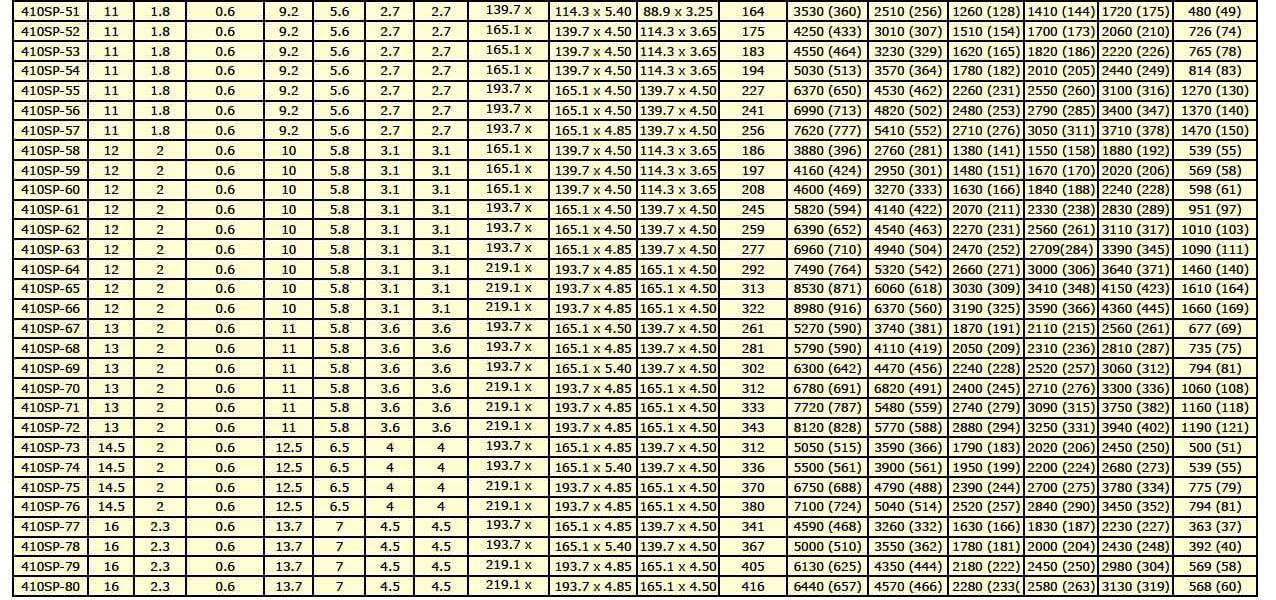

SWAGED TYPE STEEL TUBULAR POLES - 410-SP-Mpa AS PER IS : 2713 (PART II) - 1980

Some Advantages of Swaged Type Steel Tubular Poles the surface wind load is only about 60% of flat surface. the cross section tubular poles gives the same strength in every direction smooth surface tubular poles has minimum liability to corrosion. Fireproof, immune to insect infestation and no pole rot


Octagonal Poles

The poles are manufactured from tapered polygonal or circular sections which are slipped together. Damnations :Height:(5 to 12)mtr Material standard : IS : 5986, (FE -510) , EN 10027 -1-1992 ,ASTM - A656 (GR-60) Galvanization : IS : 2629, EN- 10027 - 1 – 1992, ASTM - A123 / A123M-02 Uses of pole Infrastructural Lighting , Communities & Residential Developments, Highways & Internal Roads Sports Ground Pole shaft: Confirms to IS 5986 The shaft can be of one of two pieces. Anchor bolt: Carbon Steel of Grade 8.8. Bolts are L Shaped and are galvanized as per IS2629 Each pole includes 4 no's of Bolts with 2 Nut and 2 washers each.Service door: A covered reinforced hand-hole is supplied depending on the size of the lighting pole. All structural fasteners are galvanized high strength carbon steel.All other fasteners are galvanized, zinc plated or stainless steel.

Octagonal Poles Specification

Pole Height (Mtrs.) Material of Construction Metal Protection Treatment Avg. Thickness of Galvanization Thickness of Sheet Thickness of Base Plate Bottom Diameter Top Diameter Number of Foundation Bolts PCD of Foundation Bolt Bolt Diameter
3 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 12 mm 130 mm 65 mm 4 200 mm 16 mm
5 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 12 mm 130 mm 70 mm 4 200 mm 16 mm
6 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 12 mm 135 mm 70 mm 4 200 mm 16 mm
7 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 16 mm 135 mm 70 mm 4 220 mm 20 mm
8 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 20 mm 135 mm 70 mm 4 225 mm 20 mm
9 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 20 mm 155 mm 70 mm 4 240 mm 25 mm
9 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 20 mm 200 mm 100 mm 4 310 mm 25 mm
10 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 20 mm 200 mm 90 mm 4 310 mm 25 mm
11 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 20 mm 200 mm 100 mm 4 320 mm 25 mm
12 Mtrs. BSEN 10025 Galvanized 65 Microns 3 mm 25 mm 240 mm 110 mm 4 340 mm 25 mm

High Mast Pole

We Design , Manufacture and supply high mast pole from 12 mtr to 30.5 mtr Lowering head frame masts allow the head frame to be lowered with a winch and are ideal for accessing head frames at ground-level when space around the mast is tight. These lowering head frame masts provide easy maintenance access at mast base and offer additional features such as optional head frame latching. Benefits include reducing risks of multiple internal cable-snagging problems by using a single multi-core electrical cable system for up to 12 floodlights. High masts can be manufactured as single-direction, two-direction and circular multi-directional types according to floodlight orientation,depending on the customer’s requirements. Our high mast poles are two sided Galvanized and thus have a better durability.

TECHNICAL SPECIFICATION

  • Unique gravitational self-latching and unlatching system.
  • Quick raising and lowering system.
  • Proven double drum winch and winch motor.
  • Heavily reinforced door opening to prevent buckling.
  • Anti-vandalism door lock.
  • Mast design as per wind load for structure - IS 1875(part III) 1987
  • GENERAL CONSTRUCTION IN STEEL - IS 800 2007
  • Material: BS EN 10025 S355 / JIS G3101 SS400
  • Welding: BS 5135
  • Galvanizing: ISO 1461

  • Conical Pole

    These are hollow polygonal poles have closely circular cross section at both. These electrical poles are preferred by clients for installing outdoor lights. Owing to their features like light weight, shock resistance, sturdy construction, perfect design, easy installation, durability and accurate dimensions,these Conical Poles are available in different designs, lengths and sizes.

    Features

  • Galvanized Conical Pole are mounted above the ground and will not rust due to hot dip galvanized protection
  • Conical poles due to there continuous tapering and made from one length of sheet has no such problem.
  • The conical poles of all categories have internal flushed type doors.
  • Height:(20 to 50)ft, as per requirement
  • Arm Rise: 3 degrees rise from the roadway
  • Arm Length: 3', 4', 6', 8',9' or 10' arm
  • Material: Mild Steel
  • Option: Mild Steel Hot Dip Galvanized
  • Option: Powder Coated / Liquid Spray Paint

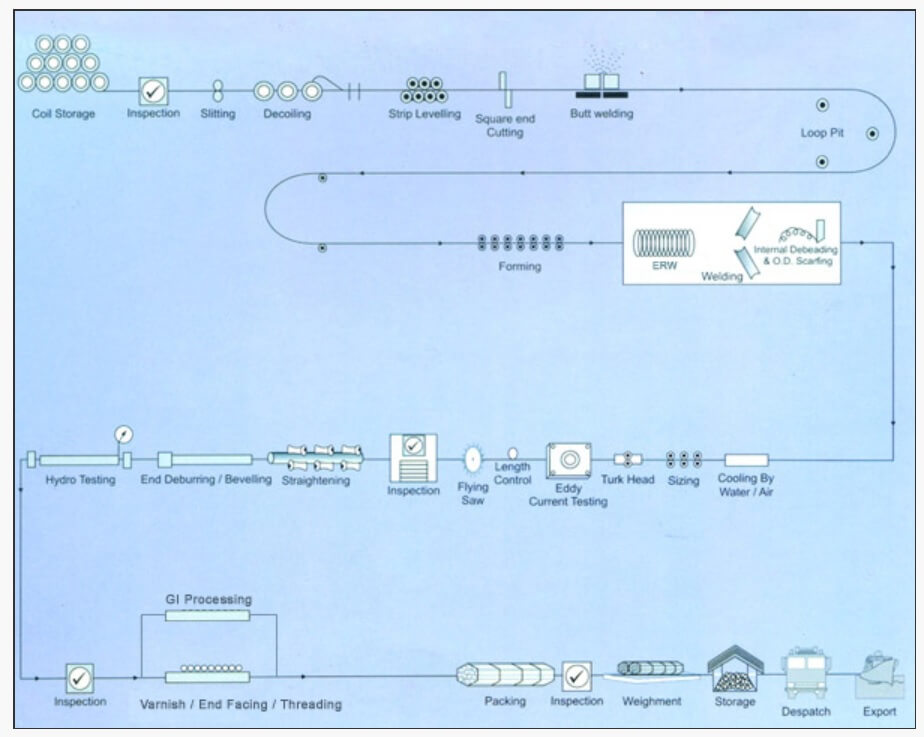

  • Manufacturing Process
